Bronze Flanges Manufacturer & Exporter — Products
Nine flange types in bronze, gunmetal and aluminium bronze, made to customer drawings and applicable standards.
Choose a flange type
Slip-On Flanges
Slip-on flanges are machined from bronze and copper-alloy grades so that the pipe slides into the bore and is secured by fillet welding or brazing, depending on material and procedure.
View details →

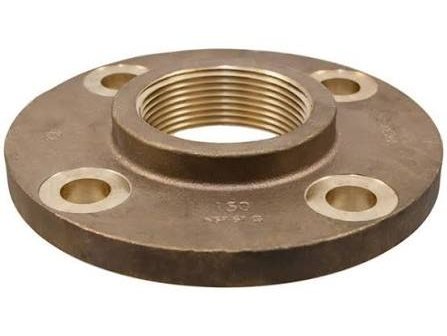

Threaded / Screwed Flanges
Threaded flanges connect to pipe through an internal thread, avoiding welding at the joint. Bronze and gunmetal are well suited because they machine cleanly and hold thread form.
View details →

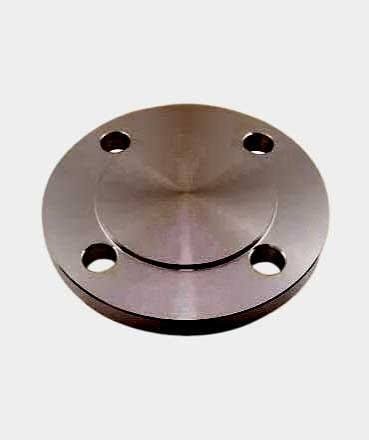

Blind Flanges
Blind flanges are solid discs used to close the end of a pipe, valve or pressure vessel nozzle. In bronze and copper alloys they are used for isolation, maintenance access and pressure testing.
View details →

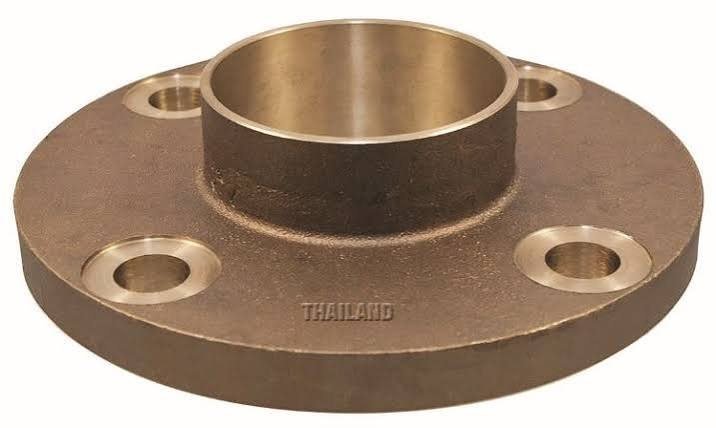

Socket-Weld Flanges
Socket-weld flanges have a recess into which the pipe is inserted. They are used mainly on smaller-diameter piping where a strong, well-aligned joint is needed.
View details →

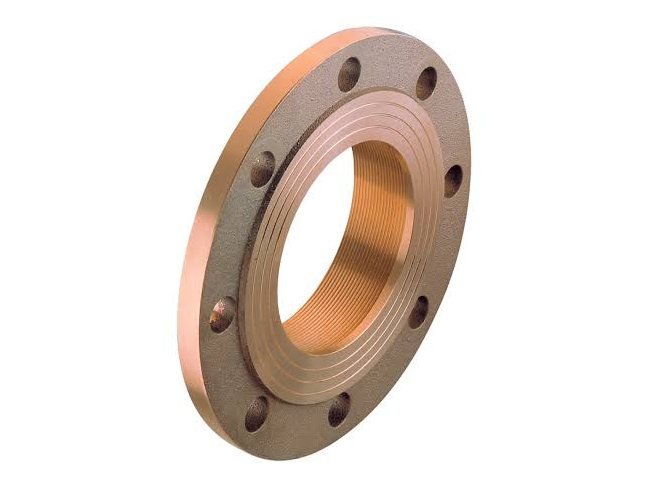

Lap Joint Flanges
A lap joint flange is a loose flange used together with a stub end. The flange rotates freely on the pipe, which simplifies bolt-hole alignment during assembly.
View details →

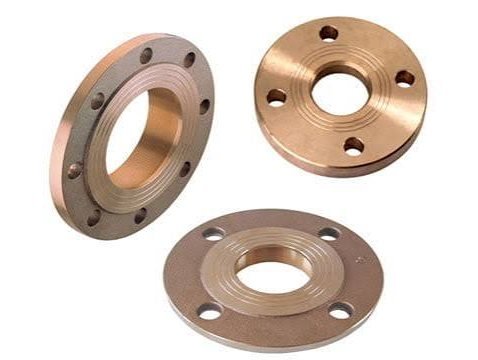

Plate Flanges
Plate flanges are flat rings with a bore and a bolt-hole pattern. They are simple, economical and easy to adapt to special drilling, thickness and bore requirements.
View details →

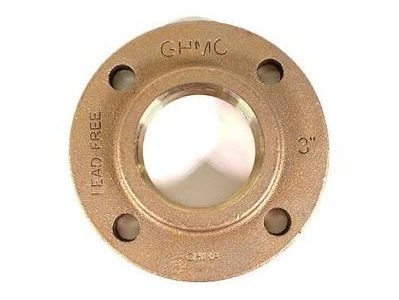

Reducing Flanges
A reducing flange connects a pipe of one nominal size to a mating flange of a different, larger size, using a single flange with a reduced bore.
View details →
Loose Flanges
Loose flanges are not fixed to the pipe. They bear against a collar, stub or lapped pipe end and are free to rotate for easy alignment of bolt holes.
View details →

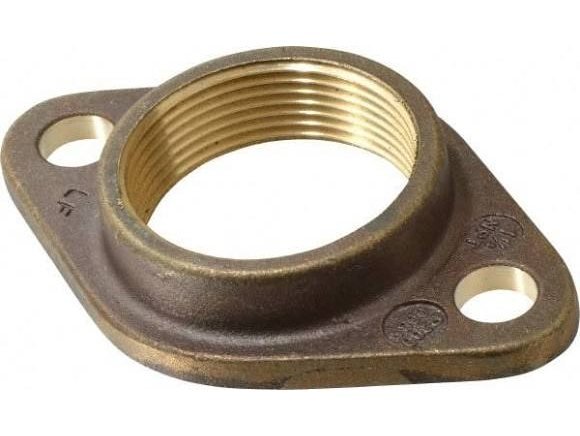

Custom / Special Flanges
Send your drawing, sample or specification. We manufacture non-standard and special flanges in bronze, gunmetal and aluminium bronze for OEM and project requirements.
View details →Typical bronze flange specifications
Values vary according to applicable specification, material condition and customer requirements. Where a specification varies by alloy or standard: Available as per applicable material and dimensional standard.
| Product | Bronze flanges |
|---|---|
| Materials | C93200, C95400, C95500, C95800, C63000, C83600, C84400 |
| Types | Slip-On, Threaded, Blind, Socket Weld, Lap Joint, Plate, Reducing, Loose, Custom / Special |
| Size | As per customer requirement / applicable standard |
| Pressure class | As applicable |
| Facing | FF / RF / Custom |
| Bore | Standard / Custom |
| Manufacturing | Casting / machining / as specified |
| Inspection | Dimensional / visual / material / testing as applicable |
| Marking | As per customer requirement |
| Surface | Machined / as specified |
| Documentation | MTC / inspection documents as applicable |
Bronze flange materials
Select a grade for composition, mechanical properties and application guidance.
| UNS grade | Alloy family | Typical flange use |
|---|---|---|
| UNS C93200 | Leaded tin bronze | General industrial piping, equipment flanges, machined threaded parts |
| UNS C95400 | Aluminium bronze | Higher-strength pump, valve and marine flanges |
| UNS C95500 | High-strength aluminium bronze | Heavy-duty marine and industrial flanges |
| UNS C95800 | Nickel aluminium bronze | Seawater, marine, offshore and desalination piping |
| UNS C63000 | Wrought nickel aluminium bronze | Flanges machined from bar or forging stock |
| UNS C83600 | Gunmetal / composition bronze | Pipe, pump and valve flanges for water and general service |
| UNS C84400 | Semi-red brass (valve composition) | Plumbing, valve and fitting flanges at moderate duty |
Have a Bronze Flange Requirement?
Send us your drawing, specification, material grade, size and quantity.
